New Arrival! MQB (5A) key programming without soldering. The new OBDSTAR V850 Adapter Kit, used with the C4-06 Adapter, provides direct-fit, solder-free immobilizer data reading for supported MQB-48 clusters, with support for All Keys Lost, Add Keys, and other key programming functions.
Key Benefits
- Solder-Free — The MQB (5A) V850 Adapter Kit eliminates direct soldering to the cluster PCB.
- AKL & Add Key — Supports key programming for supported MQB (5A) clusters.
- Direct-Fit Plates — Custom positioning plates matched to specific dashboard PCBs.
- Expanding Coverage — More MQB boards are under development.
Supported Tools
Presale Price: €203/ $225
Contact us for availability and application details.
Technical Appendix

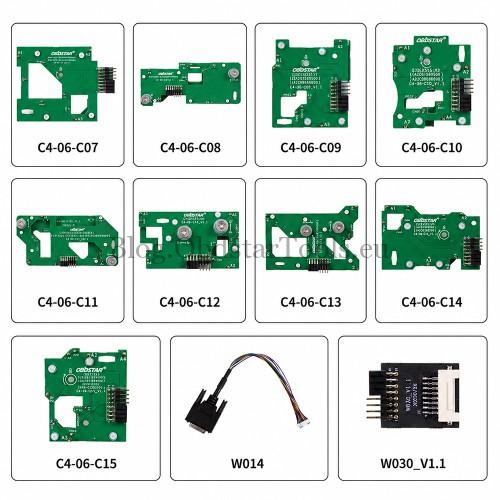

Supported Dashboard / PCB Types
| Adapter Plate | Dashboard / PCB |
|---|---|
| C4-06-C07 | D70F3525-V1 (A2C81589600); D70F3525-V2 (A2C81589600); D70F3528-V4 (A2C81589700 / A2C99606600) |
| C4-06-C08 | D70F3525-V3 (A2C81589600) |
| C4-06-C09 | D70F3526-V1 (A2C81589700 / A2C99606600) |
| C4-06-C10 | D70F3526-V2 (A2C81589700 / A2C99606600) |
| C4-06-C11 | D70F3528-V3 (A2C81589700 / A2C99606600); D70F3525-V4 (A2C81589600) |
| C4-06-C12 | D70F3529-V1 |
| C4-06-C13 | D70F3532-V2 (A2C81589500 / A2C81589501) |
| C4-06-C14 | D70F3532-V1 (A2C81589500 / A2C81589501) |
| C4-06-C15 | D70F3535 (A2C81589200); D70F3537 (A2C81589300 / A2C81589800) |

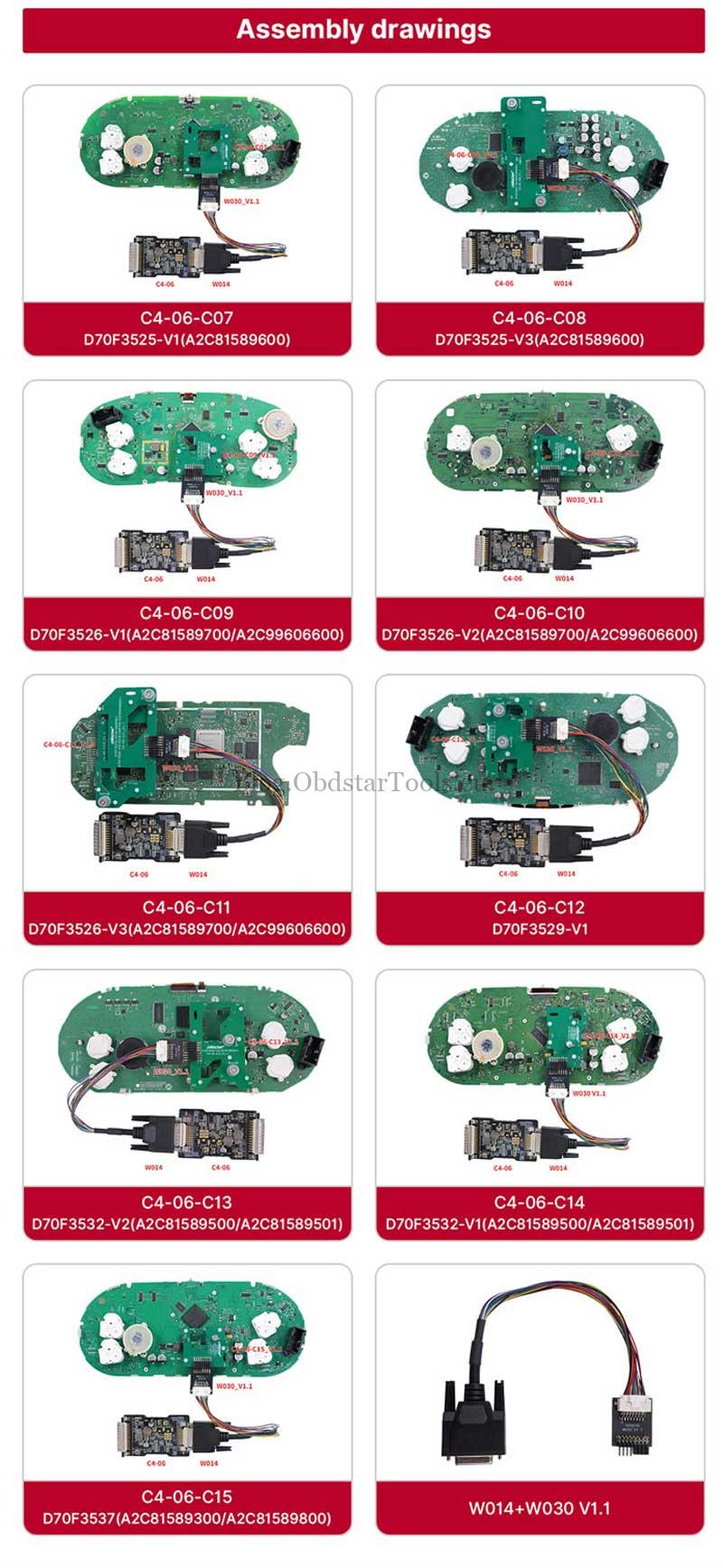

Assembly References
- C4-06-C07 — D70F3525-V1 (A2C81589600)
- C4-06-C08 — D70F3525-V3 (A2C81589600)
- C4-06-C09 — D70F3526-V1 (A2C81589700 / A2C99606600)
- C4-06-C10 — D70F3526-V2 (A2C81589700 / A2C99606600)
- C4-06-C11 — D70F3528-V3 (A2C81589700 / A2C99606600)
- C4-06-C12 — D70F3529-V1
- C4-06-C13 — D70F3532-V2 (A2C81589500 / A2C81589501)
- C4-06-C14 — D70F3532-V1 (A2C81589500 / A2C81589501)
- C4-06-C15 — D70F3537 (A2C81589300 / A2C81589800)
- W014 + W030 V1.1
Software
Software updates may vary by product configuration.
