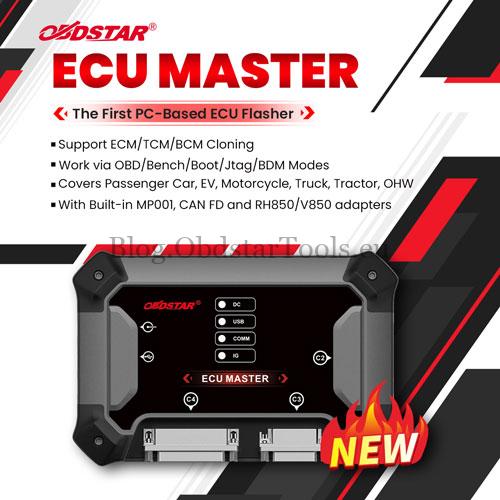

The OBDSTAR ECU Master and OBDSTAR DC706 are designed for different ECU bench programming workflows: ECU Master focuses on integrated, workshop-grade efficiency with built-in hardware integration and broader vehicle coverage, while DC706 is a portable Android-based standalone tool designed for mobile ECU cloning.
For most professional workshop users, ECU Master is the preferred solution due to its higher integration level, wider coverage, and reduced dependency on external adapters.

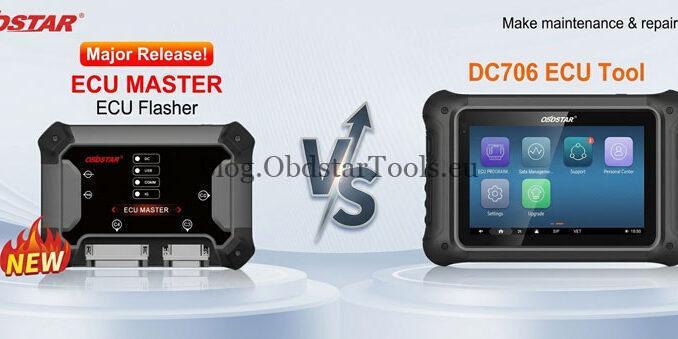

Quick Comparison: ECU Master vs DC706
Best Choice for Different Users
| User Type | Recommended Tool | Reason |
|---|---|---|
| Professional workshop | ECU Master Full Version | Full coverage + dedicated cables + no extra adapters |
| Budget bench programmer | ECU Master A | Integrated hardware with lower entry cost |

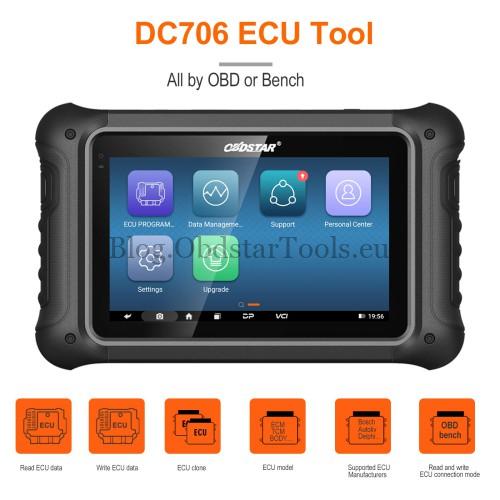

| Portable field technician | DC706 | Standalone Android tablet design |
| Truck & EV specialists | ECU Master | Supports Truck and EV modules |
| Motorcycle-focused users | ECU Master Full / DC706 | Both support motorcycle ECM |
Technical Specifications & Configuration Comparison
| Feature / Specification | ECU Master (Configuration A) | ECU Master (Full Version) | DC706 ECU Tool |
|---|---|---|---|
| Image |  |
 |
 |
| Operating System | PC-based software (Windows laptop) | PC-based software (Windows laptop) | 7-inch standalone Android tablet |
| Hardware Form | Interface box/dongle via USB | Interface box/dongle via USB | Tablet with internal battery & breakout cables |
| Passenger Car ECM/TCM/BODY | Yes | Yes | Yes |
| Commercial Vehicle (Truck/Tractor) | Yes | Yes | No |
| Electric Vehicle (EV) Modules | Yes | Yes | No |
| Motorcycle ECM Support | No | Yes | Yes |
| Airbag/BMS/SAS Reset | Yes | Yes | No |
| MP001 Programmer | Built-in (Yes) | Built-in (Yes) | Requires Extra Purchase (No) |
| CAN FD Adapter | Built-in (Yes) | Built-in (Yes) | Requires Extra Purchase (No) |
| RH850/V850 Adapters | Built-in (Yes) | Built-in (Yes) | Requires Extra Purchase (No) |
| Connection Hardware | Universal color-coded jumpers | Dedicated cables (VW MQB, BMW BDC, Benz, etc.) | Universal color-coded jumpers / P004 jumper |
| Required Extra Accessories | None | None | Requires P003+ Kit, MP001, & CAN FD |
ECU Master A vs Full Version
- ECU Master A: entry version, universal jumper wiring, car ECU/TCU/BODY support

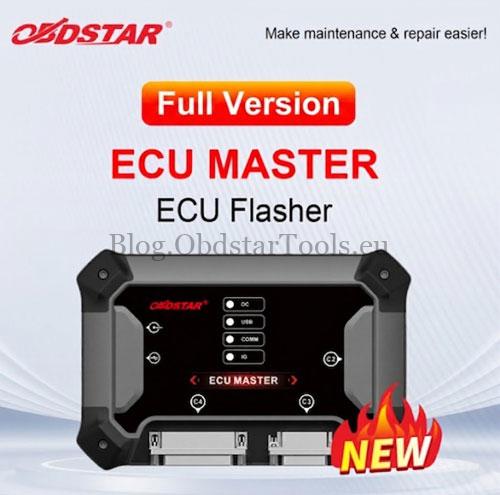

- ECU Master Full: adds motorcycle ECU + OEM dedicated cables + higher wiring accuracy
Key upgrade point: Full Version removes wiring guesswork and improves stability on high-end modules
Why ECU Master Replaces DC706 in Many Workshops
The main shift is not about power alone — it is about system integration:
- DC706 = modular system (more add-ons, more configuration)
- ECU Master = all-in-one system (ready out of the box)
This leads to:
- fewer external adapters
- faster bench setup
- lower long-term cost
- fewer connection errors
How to use OBDSTAR ECU Master?
- Connect ECU Master box → Windows laptop (USB)
- Open software and select vehicle (e.g., Passenger Car, EV, Truck) and module(ECM, TCM, or BODY)
- Connect ECU (jumpers for A / OEM cable for Full)
- Start read / write / clone / reset operations
Recommendation
If you need portability and simple standalone use, DC706 is still valid.
But if your priority is:
- workshop efficiency
- full vehicle coverage (car + truck + EV)
- reduced accessories
- safer wiring system
- future-proof ECU bench platform
The OBDSTAR ECU Master (especially Full Version) is the stronger long-term investment.
