The OBDSTAR MOTOMASTER provides a professional-grade “PIN Code Reset” function to quickly resolve immobilizer lockouts, which can be a major headache when a key transponder fails, a fob battery dies, or you simply need to clear old data. This 4-digit PIN serves as your essential emergency lifeline to unlock the bike via the dashboard instrument cluster, and the MOTOMASTER ensures you can regain access even if the original code is lost or incorrectly stored.
Essential Preparation
Ensure your diagnostic setup includes the following components:
- Device: OBDSTAR Moto Master
- Main Cable: M001A
- Ducati Connector: M041
Quick 3-Step Reset Procedure
Follow this streamlined path on your MOTOMASTER interface to clear the security lockout:
1. Vehicle Identification

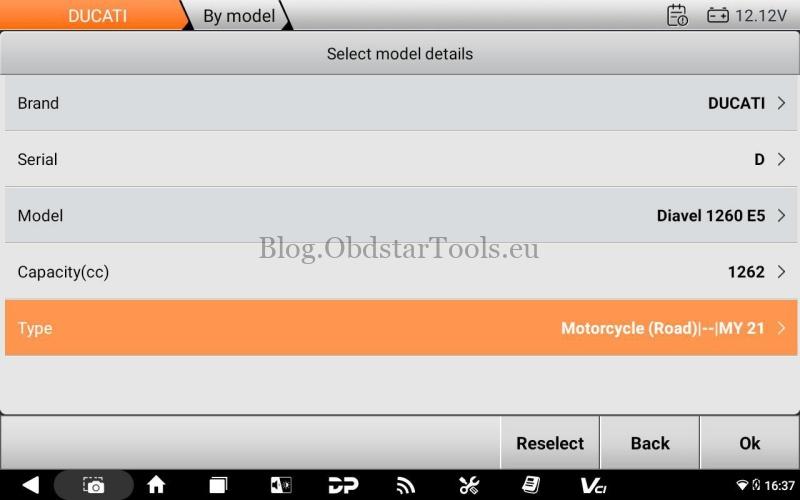

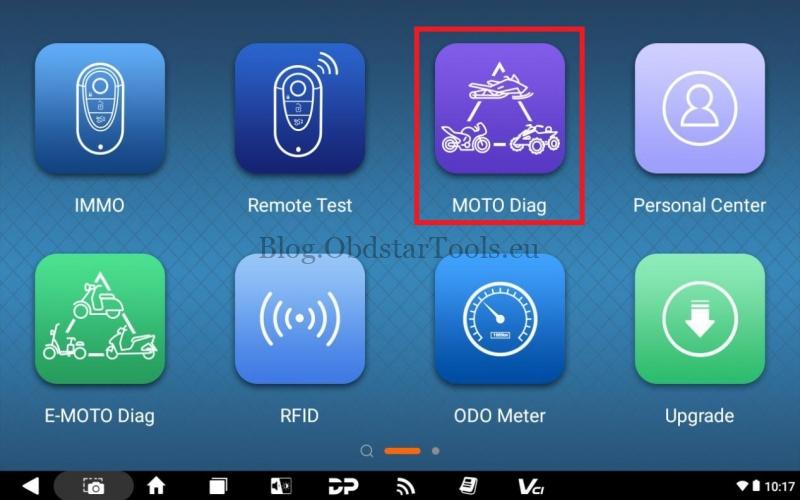

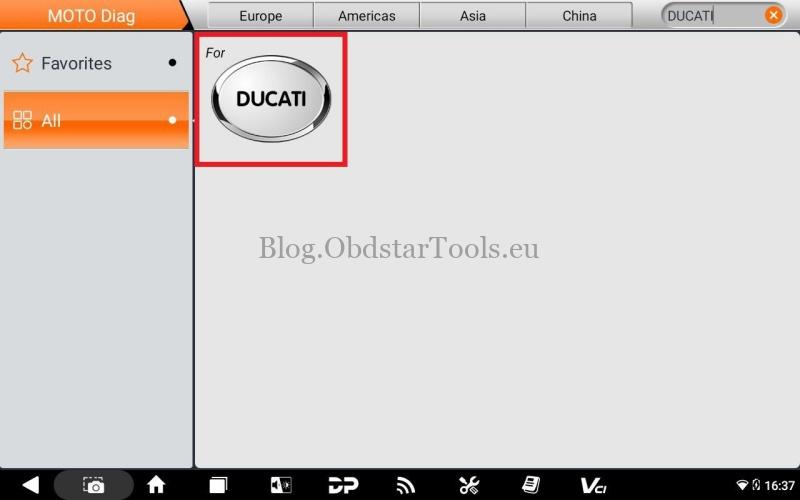

- Navigate to MOTO Diag > DUCATI > Select the Latest Version > Diagnosis > By model > D > Diavel 1260 E5 > 1262 > MY 21.
2. System Selection

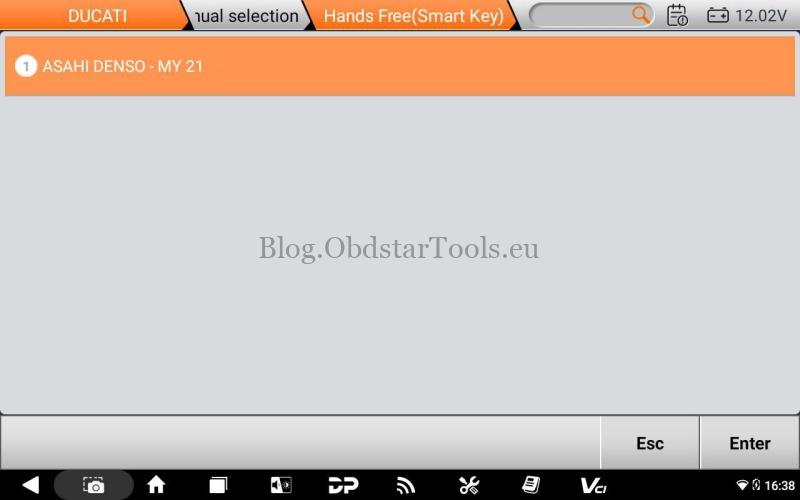

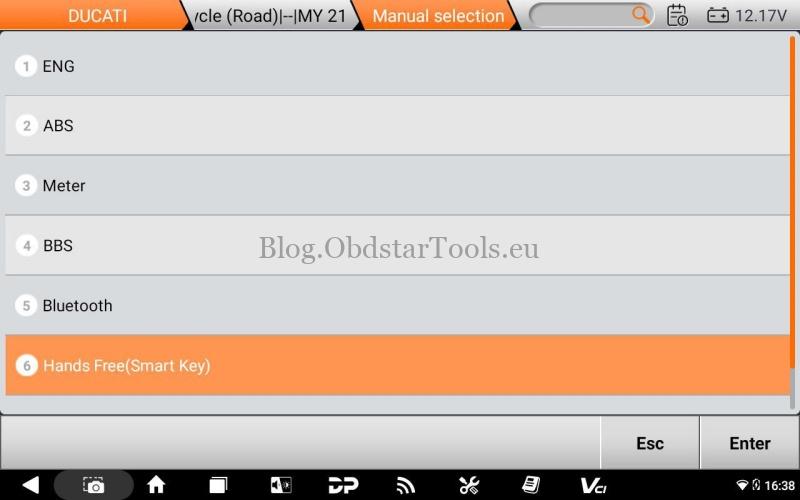

- Tap Manual selection > Hands Free (Smart Key) > ASAHI DENSO-MY 21.
3. Execute Reset
- Enter the Special Function menu.
- Enter the authorization password 123 and click OK.

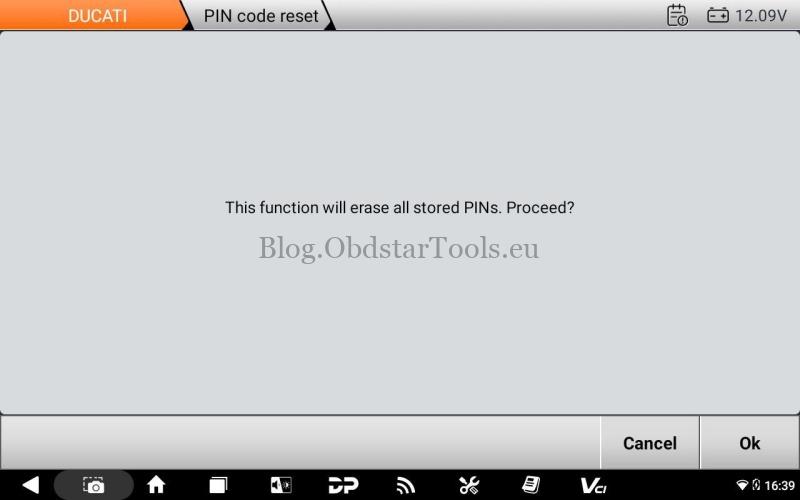

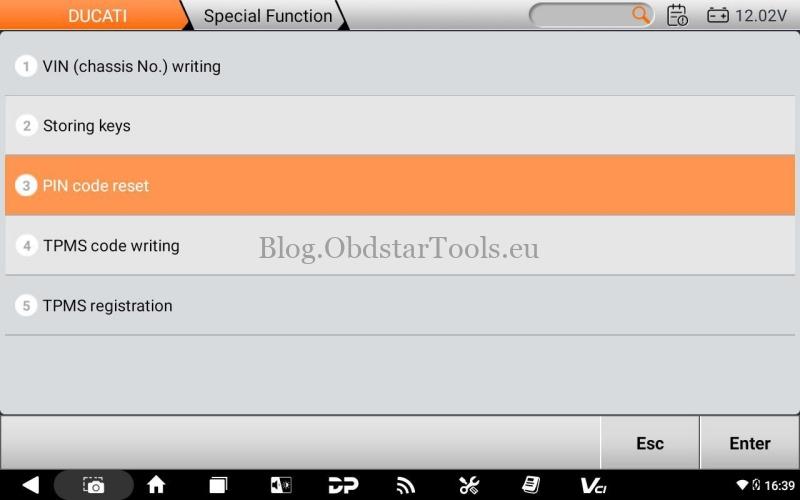

- Select PIN code reset and confirm by clicking OK.

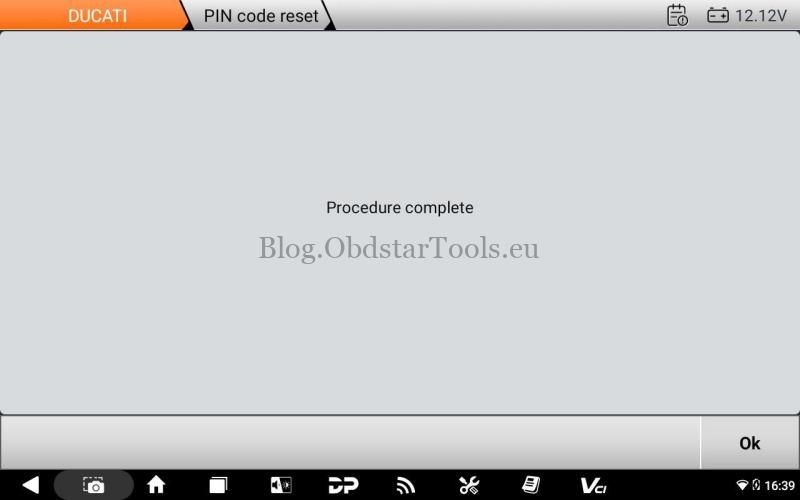

- The device will display “Procedure complete” once the PIN is successfully erased.
Setting Your New PIN
After the reset, use the bike’s dashboard to finalize your security:
- Ignition ON: Turn the ignition switch to the ON position.

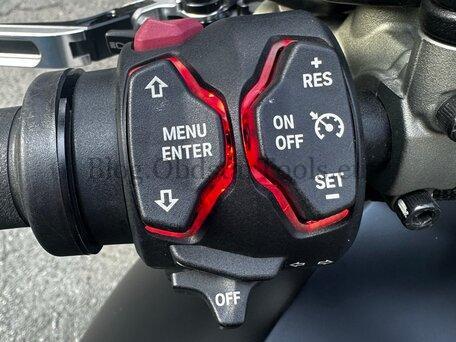

- Access Menu: Wait for the home page, then hold the MENU ENTER button on the left handlebar.
- Default Entry: Select the PIN CODE function and enter the temporary reset code 0000.
- Personalize: Set a new personalized 4-digit PIN to complete the modification.
Why OBDSTAR MOTOMASTER?
The OBDSTAR MOTOMASTER is an industry-leading diagnostic tool that simplifies complex Ducati security tasks. It eliminates the need for expensive dealer-only interventions by providing direct access to the Immobilizer System (IMMO), making it an indispensable asset for professional technicians and advanced riders managing modern motorcycle anti-theft data.
